Đặc tính

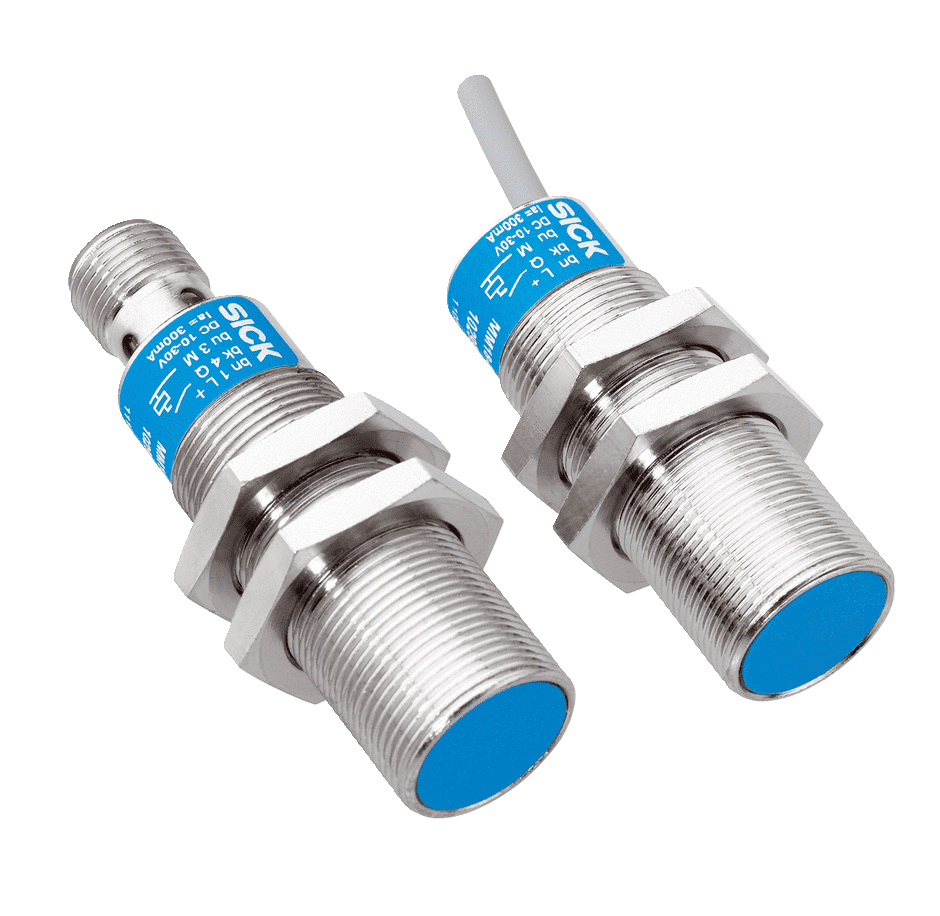

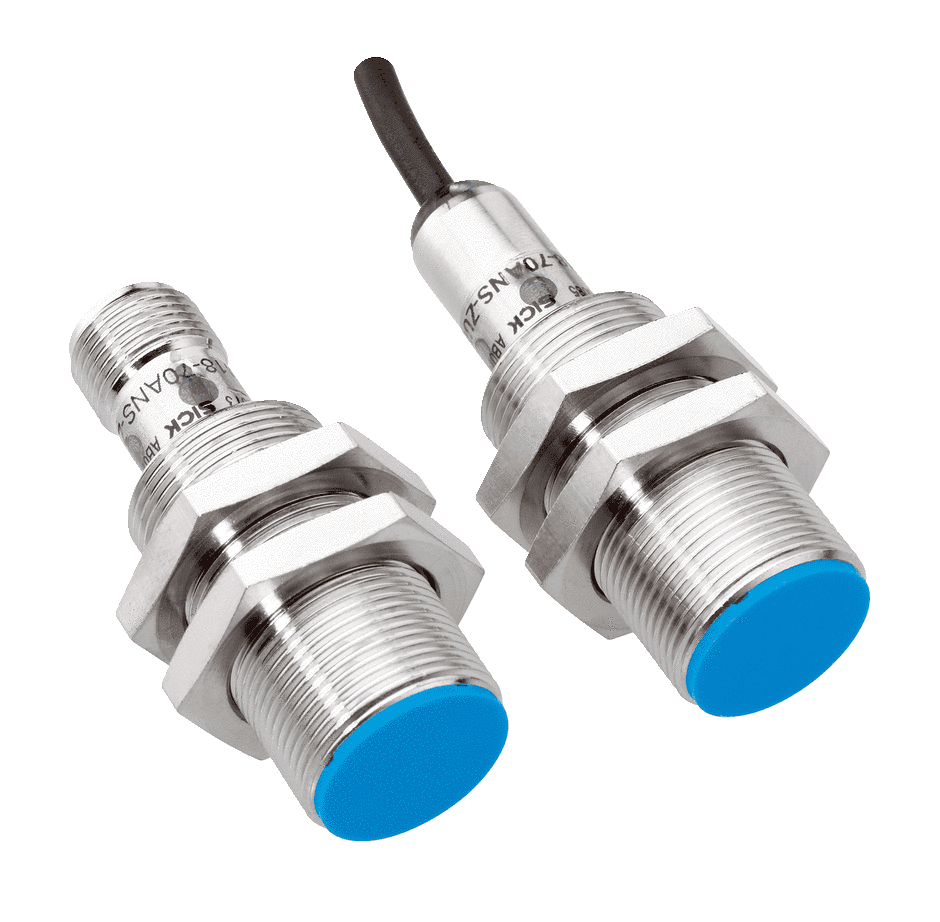

| Housing | Cylindrical thread design |
| Housing | Short-body |
| Thread size | M18 x 1 |
| Diameter | Ø 18 mm |
| Sensing range Sn | 5 mm … 120 mm 1) 2) 3) |
| Safe sensing range Sa | 97.2 mm 2) 3) |
| Magnetic sensitivity | 0.4 mT |
| Switching frequency | 5,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 4) |
Cơ khí/ Điện tử
| Supply voltage | 10 V DC … 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V 1) |
| Current consumption | 10 mA 2) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 10 % … 20 % |
| Reproducibility | ≤ 1 % 3) 4) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| Short-circuit protection |  |
| Reverse polarity protection | |
| Power-up pulse protection | |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz … 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C … +75 °C |
| Housing material | Metal, Nickel-plated brass |
| Sensing face material | Plastic |
| Housing length | 58 mm |
| Thread length | 42 mm |
| Tightening torque, max. | ≤ 40 Nm |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Protection class | III |
