Đặc tính
| Housing | Cylindrical thread design |
| Thread size | M18 x 1 |
| Diameter | Ø 18 mm |
| Sensing range Sn | 3 mm … 12 mm |
| Safe sensing range Sa | 9.18 mm 1) |
| Installation type | Non-flush |
| Switching frequency | 50 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | NPN |
| Output function | Complementary |
| Output characteristic | Wire configurable |
| Electrical wiring | DC 4-wire |
| Adjustment | Potentiometer (Sensitivity) |
| Enclosure rating | IP68, IP69K 2) |
| Authorizations | Ecolab 3) CE-conformity cULus |
Cơ khí/ Điện tử
| Supply voltage | 10 V DC … 36 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2.5 V DC 2) |
| Current consumption | 12 mA 3) |
| Time delay before availability | ≤ 200 ms |
| Hysteresis | 3 % … 20 % |
| Reproducibility | ≤ 5 % 4) 5) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| Short-circuit protection |  |
| Reverse polarity protection | |
| Power-up pulse protection | |
| Shock and vibration resistance | According to EN 60068 |
| Ambient operating temperature | –30 °C … +85 °C 6) |
| Ambient storage temperature | –40 °C … +85 °C |
| Housing material | Plastic, PBT |
| Housing length | 85 mm |
| Thread length | 47 mm |
| Tightening torque, max. | ≤ 2.6 Nm |

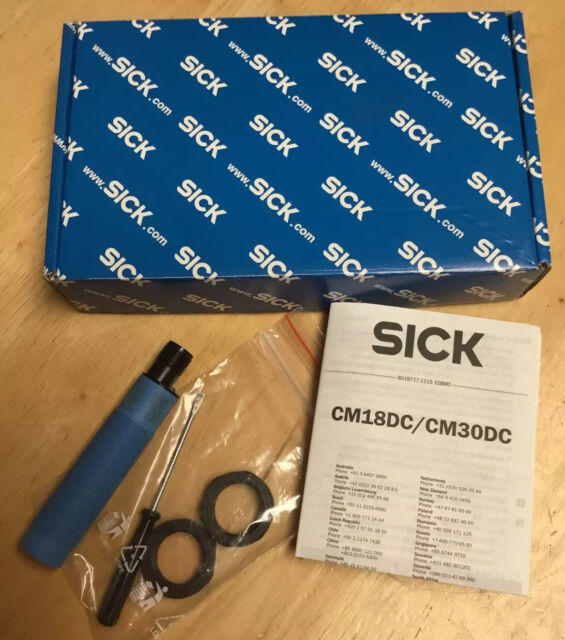

| Items supplied | Mounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x) |
| UL File No. | NRKH.E191603 |
